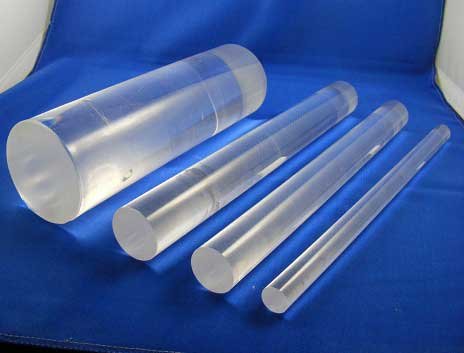

Clear Quartz rod
Clear Quartz rod
Specifications
Outer Diameter
Wall Thickness
Length
Application
It is mainly used in halogen light,fiber optic lighting,quartz fiber manufacturer and semiconductor wafer processing.
Advantage
It has advantages of high purity,strong high temperature resistance and low thermal expansion coefficient.
Diameter And Tolerance
Diameter tolerance(mm) | Max out of round |
2.0±0.1 | 0.10 |
2.5±0.1 | 0.10 |
3.0±0.1 | 0.10 |
4.0±0.15 | 0.15 |
5.0±0.15 | 0.15 |
8.0±0.2 | 0.20 |
10.0±0.2 | 0.20 |
15.0±0.2 | 0.20 |
19.0±0.3 | 0.30 |
Physical Data
Softening Point(℃ ) | 1730 |
Continuous Using Temperature(℃
) | 1100-1200 |
The Highest Using Temperature In Short Time(℃) | 1450 |
SiO2 Content | 99.9999% |
Chemical Composition
As | Cr | Fe | Mg | Ti | Ca | Al | Na | Li | K |
<0.002 | 0.05 | 0.2 | 0.1 | 0.1 | 0.1 | 14 | 0.7 | 0.1 | 0.6 |
Quality Controlled
1.tolerance control(min±0.1)
2.Accurate dimension according to customer’s request
3.Complete after-service system
Further-Processing
Ends closed, sandblasting, polished, bended, cut, pinched, burned mouth and so on. The special one, please kindly send me the drawing.
