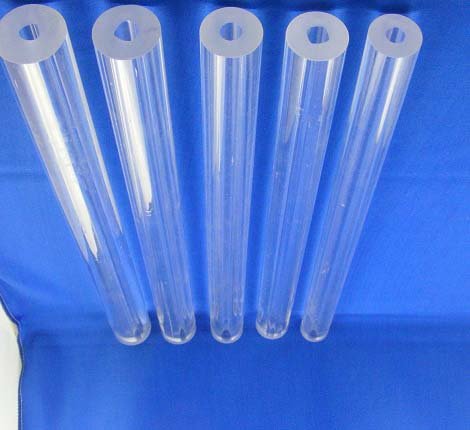

Thick Wall Clear Quartz Tube
Product name : Thick Wall Clear Quartz Tube
Model No. : LLTWCT
Products Category: > Quartz Tube > Thick Wall Quartz Tube
Thick Wall Clear Quartz Tube
specification
Melting point is more than 1200℃
different usage of tubes with different quartz sand
Application
used in chemical pipe manufacture
Specification And Tolerance
OD range | WT | WT | WT tolerance | OD tolerance |
15-50mm | 1-5 | 1-5 | ±5 | ±1 |
50-100mm | 2-5 | 2-5 | ±5 | ±1 |
100-200mm | 3-6 | 3-6 | ±5 | ±1 |
Chemical Properities
Al | Fe | K | Na | Ca | Na | Mg | Cu | Mn | Cr | B | Ti | |
5-12 | 0.19-1.5 | 0.71-1.6 | 0.12-1.76 | 0.17-1.23 | 0.12-1.76 | 0.05-0.5 | 0.05 | 0.05 | ＜0.05 | ＜0.1 | ＜1.0 | |
Physical Properities
Density 20℃kg.m﹣3 | 2.2 |
Coefficient of expansion 25-300℃℃﹣1 | 0.56 |
Softening point (℃) | 1700 |
Anealning point (℃) | 1230 |
Strain point(℃) | 1140 |
Quality Controlled
1.tolerance control(min±0.1)
2.Accurate dimension according to customer’s request
3.Complete after-service system
Further-Processing
Ends closed, sandblasting, polished, bended, cut, pinched, burned mouth and so on. The special one, please kindly send me the drawing.
OEM Services:Yes
