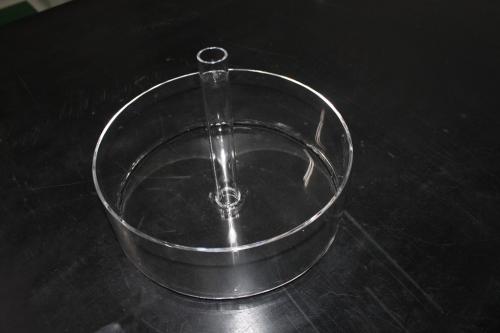

Big Diameter Clear Quartz Tube
Product name : Big Diameter Clear Quartz Tube
Model No. : LLBDCT
Products Category: > Quartz Tube > Big Diameter Quartz Tube
Big Diameter Clear Quartz Tube：
Specifications
1.Melting Point:1200 centigrade degree
2.Outer Diameter:150mm
Wall Thickness:5mm
Length:260mm
3.high purity, good spectral transmission, well controlled dimension
4.SiO2 Content is more than 99.95%
Application Of Large Diameter Clear Tube
Used in stream line production
Dimensional Tolerance
Range of OD & tolerance | Thick-walled & tolerance(mm) | siding(%) | Out of round | bow(%) | ||
OD | tolerance | Thick-walled | tolerance | |||
100 | 1.0-2.0 | 2.5-7.0 | 0.5-1.0 | 20 | 2.0 | 3 |
120 | 1.0-2.0 | 3.5-7.0 | 0.5-1.0 | 25 | 2.0 | 3 |
160 | 1.0-2.0 | 3.0-7.0 | 0.5-1.0 | 25 | 2.0 | 3 |
180 | 1.0-2.0 | 3.0-8.0 | 1.0-1.5 | 25 | 2.0 | 3 |
Physical Properties Of Large Diameter Clear Tube
Density 20℃kg/m3 | 2.2 |
Coefficient of expansion 25-300℃/℃ | 0.56 |
Softening point (℃) | 1700 |
Anealning point (℃) | 1230 |
Strain point(℃) | 1140 |
Chemical Composition
Al | Fe | K | Na | Ca | Na | Mg | Cu | Mn | Cr | B | Ti | |
5-12 | 0.19-1.5 | 0.71-1.6 | 0.12-1.76 | 0.17-1.23 | 0.12-1.76 | 0.05-0.5 | 0.05 | 0.05 | <0.05 | <0.1 | <1.0 | |
Quality Controlled
1.tolerance control(min±0.1)
2.Accurate dimension according to customer’s request
3.Complete after-service system
Further-Processing
Ends closed, sandblasting, polished, bended, cut, pinched, burned mouth and so on. The special one, please kindly send me the drawing.
OEM Services:Yes
